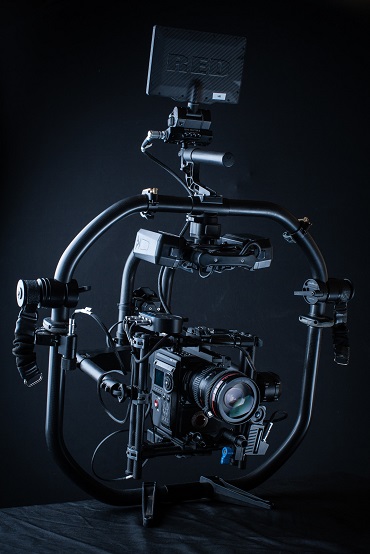

MōVI Pro Gimbal

Home / MōVI Pro Gimbal
Awesome Image

Description


This bundle includes the Mōvi Pro, Mōvi Ring Pro II, and MIMIC controller and is designed to get professional filmmakers up and shooting with the Mōvi Pro.To allow MIMIC + Bush Pilot to control external lens motors (see compatible motors here), just add one or more Mōvi Pro Lens Motor Cables to your order..

Key Highlights

  • MōVI Pro Digital 3-Axis Camera Stabilizer
  • MōVI Ring Pro Handle
  • For Cameras & Rigs up to 15 lb
  • Bush Pilot Auxiliary Control Knob
  • MIMIC
  • Keeps Horizon Level & Counteracts Drift
Features

  • Innovative structural design for ease of use, convenience, strength, versatility
  • Dual Hot Swappable 22.5v 1.8Ah Batteries with status indicators
  • Integrated Focus / Iris / Zoom controller
  • Bush Pilot Lens Control Knob
  • Embedded screen for tuning / customization
  • Increased motor torque
  • Integrated power ports under camera cage:
  • 12-14v 6A D-Tap output for camera power
  • 12V 2A D-Tap output for accessory power
  • 12V 1A D-Tap output for accessory power on back of Mōvi
  • Ultra fast full stiffness and Filter autotune in ~10 seconds
  • Mōvi Pro applications (iOS, Android)
  • Majestic Mode
  • Timelapse
  • Dual GPS (top and bottom) for solid signal in Sky or GroundView
  • Full Red RCP integration (Focus, Iris, ISO, Start stop, etc) with optional RCP Cable
  • Internal long range 2.4GHz frequency hopping radio for connection to MIMIC
  • Multiple handle options (Mōvi RING Pro II , Low Profile Handle, Classic Handle, Toad + Ninja Star, Toad on a Stick)
Specifications
  • Weight (w/o batteries): 2.65kg/5.84lbs
  • Camera cage dimensions: 196 x 200 x 175mm (L*W*H)
  • Maximum payload: 6.80kg/15lbs
  • 2.4 GHz Frequency-Hopping Radio
  • 1 x 12-14 VDC, 6 A D-Tap
  • 1 x 12 VDC, 2 A D-Tap
Package List of items

Mōvi Pro, jimmy, Mōvi Ring Pro II, and MIMIC controller.

MōVI Pro
1
Mōvi Pro
2:
Mōvi Ring Pro II
3:
MIMIC with Handlebars
4:
1x Magic arm
5:
2x Mōvi Pro Battery Pack 1.8Ah
6:
2x Mōvi Pro Battery Charger
7:
2x Movi Pro batteries modified
8
Mōvi Pro Adjustable Camera Plate
9
Mōvi Adjustable Top Camera Plate
10
Mōvi Hot Shoe Mount
11
1x COM to Mōvi Controller Receiver Cable
12:
1x Mōvi Rod Mount Adapter
13:
Movi ninja star adaptor plate
14:
Tod Male Adapter
15:
Mimic handle head plate
16:
Bush Pilot Lens Control Knob
17:
Red camera bottom plate
18
Red camera side plate
19
ALEXA Mini/LF camera bottom plate
20
ALEXA Mini/LF camera side plate
21
Red lcd cable
22:
V mount battery plate Holder
23:
MIMIC with Handlebars
24:
1x D-tap splitter
25:
Red D-tap power cable
26:
ALEXA Mini/LF D-tap power cable
27:
2x D-tap to usb adaptors
28
1x D-tap dc cable
29
4x SDI thin cables 1 meter
30
Counter waits plate
31
5x5x Counter waits Big and small
32:
6x 18650 cells
33:
V stand
34:
2x Bolt ⅜ -16 x ⅝”
35:
2x Bolt ¼ -20 x ½”
36:
2x Bolt ¼ -20 x ⅜”
37:
1x 2.00mm Hex Driver
38
1x 2.50mm Hex Driver

JIMMY
1
Jimmy head bracket
2
Head spring isolator

HOLLYLAND COSMO 1200 HDMI/SDI WIRELESS Tx-Rx SYSTEM
1
1x Transmitter
2:
1x Receiver
3:
8x 5GHz Antenas
4:
2x DC Conversion Cable
5:
Magic Arm

NUCLEUS-M: WIRELESS LENS CONTROL SYSTEM(full kit)
1
Tilta Nucleus-M Wireless Lens Control System
2:
Wireless FIZ Hand Unit
3:
2 x Wireless Motors
4:
2 x 19mm Motor Rod Clamps
5:
2 x 19 to 15mm Bushings
6:
Wireless Left Handle (Focus)
7:
Wireless Right Handle (Iris, Zoom)
8
4 x Follow Focus Disks
9
7-Pin to D-Tap Motor Power Cable (29")
10
7-Pin to 7-Pin Straight Motor Cable (11.7")
11
7-Pin to 7-Pin Straight Motor Cable (7")
12:
2 x Handle to ARRI Rosette Adapter
13:
2 x Handle to Gimbal Bar Adapter (25 to 30mm Compatibility)
14:
Four-Slot 18650 Battery Charger
15:
AC Power Cord for Charger
16:
Wireless FIZ Hand Unit Strap

TIFFEN FILTERS
1
1x Tiffen 4x5" Linear Polarizer Filter
2:
1x Tiffen 4 x 5.65" Neutral Density 0.3 Filter
3:
1x Tiffen 4 x 5.65" Neutral Density 0.6 Filter
4:
1x Tiffen 4 x 5.65" Neutral Density 0.9 Filter
5 :
1x Tiffen 4 x 5.65" Neutral Density 1.2 Filter

Mattbox
1
4X5.65 Mattbox

Monitor
1
Freeworld FW-279S 7" High-Brightness Full HD Monitor

V-MOUNT BATTERY
1
4x Dynacore DM-155S V-Mount Battery
2:
Dynacore DM-155S V-Mount battery Charger
