Description

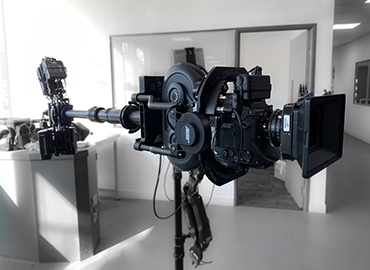

Convert from low to high shots or peer around corners with the TRINITY 5-axis gimbal stabilizer. Capture footage in revolutionary ways with new camera movement. You can customize the TRINITY to suit the operator. This set includes a V-Mount Battery Mount.

Key Highlights

  • TRINITY Rig, artemis, & monitor
  • Stabilize up to 66 lb
  • Delivers fluid, wide-ranging control
  • Move camera from low to high smoothly
  • 5" Transvideo Recorder/Monitor
  • Capture seamless POV shots
  • V-Mount battery mount
Features

  • 12V / 24V, high capacity wiring
  • Hot swap technology
  • 2x 3G HD SDI
  • 1x SD (HD) video
  • USB power out
  • D-Tap power out
  • Video power out
  • Focus power out
  • Aux power out
  • Can Bus
  • Tally system
SPECIFICATIONS

BATTERY ACCESSORIES
Accessory Type
Battery Plate - V-mount
Battery Plate Choice:
V-Mount

COMPATIBILITY - CAMERA
ARRI:
ARRI ALEXA
ARRI ALEXA Mini
ARRI ALEXA SXT Plus

MONITORS
Monitor Input:
3G-SDI
Monitor Size:
5.0" and Under - 5" Transvideo StarliteHD5-ARRI OLED Monitor/Recorder
Monitor Features:
Touchscreen
Monitor Type:
OLED - 5" Transvideo StarliteHD5-ARRI OLED Monitor/Recorder
Recorder & Monitor:
Yes
Display Functions:
Waveform Vectorscope Histogram

POWER
Accessory Power Connections:
USB - Power Out - TRINITY
D-Tap - Power Out - TRINITY
Video - Power Out - TRINITY
Focus - Power Out - TRINITY
Other - AUX Power Out - TRINITY

RECORDERS
Media Rec Options:
SD Card
Recorder Options:
Touchscreen
Monitor/Recorder

RECORDING
Recording Format:
H.264 - Record rushes on SD card

STABILIZER ACCESSORIES
Gimbal Acc'y Type:
Monitor Movement - ARRI artemis Joystick/Monitor Mount attaches a monitor to the TRINITY 5-axis gimbal to doc an on-board monitor

STABILIZERS / STEADY DEVICES
Stabilizer Type:
Handheld Pole
Gimbal Payload:
Over 60.0lbs - Up to 66 lb (30 kg) payload
Gimbal Axis:
5-Axis
Battery Operable:
Yes
Remote Capable:
No - This is a handheld unit. The camera and lens can be remotely controlled via optional accessories, but the TRINITY gimbal itself, when combined with the ARRI artemis, is designed for handheld footage capture.
Gimbal Modes:
High Mode
Inverted Mode
Locked Mode
Low Mode
Functions Included:
32-bit ARM-based gimbal technology - to perform controlled movements in 5-axis of unrestricted shooting
Drop Down
Locked Mode - TRINITY can be set to mimic traditional gimbals so tilt access is connected directly to the post
Peer around corners - Set the TRINITY post setting at 45-degrees then twist it left or right in either low or high mode
Tally System
